Here are my notes for Andrej Karpathy’s video titled The spelled-out intro to neural networks and backpropagation: building micrograd . I’m assuming that the reader is following along with their own Jupyter notebook.

Import statements#

Run these import statements so we don’t need to import anything later on:

from collections import deque
from enum import Enum
from graphviz import Digraph
import json
import math
import matplotlib.pyplot as plt
import numpy as np
%matplotlib inline

Derivatives#

Let’s start simple. Consider the following function:

\[ f(x) = 3x^2 - 4x + 5 \]

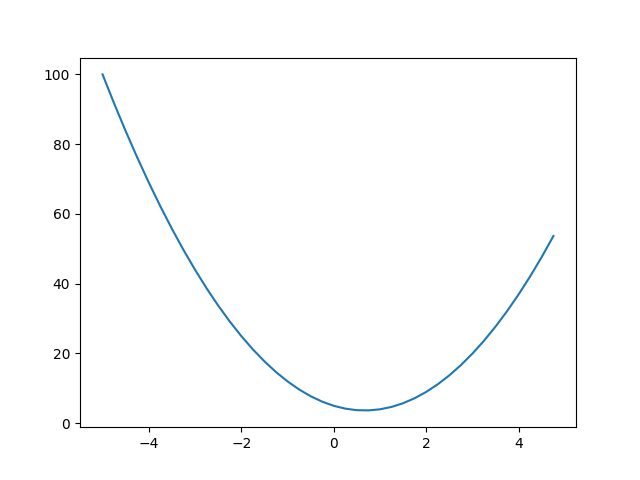

We can plot this function like so:

f = lambda x: 3*x**2 - 4*x + 5
xs = np.arange(-5, 5, 0.25)
ys = f(xs)
plt.plot(xs, ys)

Recall the formula to find the derivative of the function \(f(x)\):

\[ f'(x) = \lim_{h \to 0} \frac{f(x+h)-f(x)}{h} \]

If we wanted to computationally find the approximate derivative at any point along the function, we can use this formula to compute it.

h = 0.000001 # Small h value as a substitute for h -> 0
x = 3.0
f(x + h) - f(x)) / h

14.000003002223593

Here, we tried to approximate the derivative of \(f(3)\) and we get a value of 14.000003002223593. Note that limits imply abstract infinitesimal values which cannot be fully represented in computers, so the best way we can represent \(\lim_{h \to 0}\) is to set h to a value that is really close to 0, in this case, 0.000001.

We can verify that this works by computing the derivative as if we were back doing high school calculus.

\[\begin{aligned} f(x) &= 3x^2-4x+5 \\ f'(x) &= 6x-4 \\ f'(x) &= 6(3.0)-4 \\ f'(x) &= 14.0 \end{aligned}\]

The essence of the derivative is a bit abstract and requires more foundational knowledge to truly appreciate, but we can make do with the general description that the derivative of a function tells us by what factor that function changes at any given point.

Partial Derivatives#

Previously, we examined the derivative of a function with respect to one variable. Now, we’re going to study a function with multiple variables.

Let’s consider the following function:

\[ g(a,b,c) = ab + c \]

We want to know how \(g\) changes with any changes made to the variables \(a\), \(b\), and \(c\).

Let’s consider \(g\) at the point \(a=2.0, b=-3.0, c=10.0\) and let’s determine how \(g\) changes with respect to \(a\):

a, b, c = 2.0, -3.0, 10.0
g = lambda a, b, c: a * b + c
h = 0.000001
dgda = (g(a+h, b, c) - g(a, b, c))/h
print(dgda)

-3.000000000419334

This tells us that at the point \(a=2.0, b=-3.0, c=10.0\), increasing \(a\) decreases \(g(a,b,c)\) by a factor of 3.

Here are the slopes for \(b\) and \(c\) at \(a=2.0, b=-3.0, c=10.0\):

dgdb = (g(a, b+h, c) - g(a, b, c))/h
dgdc = (g(a, b, c+h) - g(a, b, c))/h
print(dgdb)
print(dgdc)

2.000000000279556
0.9999999992515995

Like before, we can validate these values by hand:

\[ g(a,b,c) = ab+c \]\[ \frac{\partial g}{\partial a} = b = -3 \hspace{1.5cm} \frac{\partial g}{\partial b} = a = 2 \hspace{1.5cm} \frac{\partial g}{\partial c} = 1 \]

Implementing the Value class#

Now we’re going to implement a Value class that will serve as a building block for developing neural networks. As always, we’ll start simple. We first and foremost want our Valueclass to represent a numerical value.

class Value:
    def __init__(self, value):
        self.value = value

    def __repr__(self):
        s = json.dumps({
            "value": self.value
        }, indent=2)
        return f"Value: {s}"

We have a simple constructor that accepts and stores a value. We also created a __repr__ method to be able to print and inspect our Value class in a human-readable format.

print(Value(3.14))

Value: {
  "value": 3.14
}

Next, we want to be able to perform operations on our Value class. Let’s go ahead and implement addition and multiplication magic methods for this class:

class Value:
    def __init__(self, value):
        self.value = value

    def __add__(self, other):
        return Value(self.value + other.value)

    def __mul__(self, other):
        return Value(self.value * other.value)

    def __repr__(self):
        s = json.dumps({
            "value": self.value
        }, indent=2)
        return f"Value: {s}"

Let’s quickly test these methods.

a = Value(2.5)
b = Value(7.0)
print(a + b)
print(a - b)
print(a * b)
print(a / b)

Value: {
  "value": 9.5
}
Value: {
  "value": -4.5
}
Value: {
  "value": 17.5
}
Value: {
  "value": 0.35714285714285715
}

We now need our Value class to maintain some kind of “memory” of how it was created. Firstly, we need to know what values were involved in creating any given value as well as the operation. If you are familiar in with the concept of backpropagation, you may see why this is necessary. If not, that’s okay.

Let’s say I have the following equation:

\[ 1+2=3 \]

This can be modeled with our Value class like so:

Value(1) + Value(2) => Value(3)

Let’s say we take our Value(3) and use it to perform some calculations. But let’s also consider that sometime later we want to refer back to Value(1) and Value(2) and recall that these Value objects were added to create Value(3). A solution might look like this:

class Op(Enum):
    NONE = 0
    ADD = 1
    MUL = 2

    def __str__(self):
        match self:
            case Op.NONE:
                return "none"
            case Op.ADD:
                return "addition"
            case Op.MUL:
                return "multiplication"
            case _:
                raise ValueError("Unknown operation")

    def opstr(self):
        match self:
            case Op.NONE:
                return ""
            case Op.ADD:
                return "+"
            case Op.MUL:
                return "*"
            case _:
                raise ValueError("Unknown operation")

class Value:
    def __init__(self, value, children=set(), operation=Op.NONE):
        self.value = value
        self.children = children
        self.operation = operation

    def __add__(self, other):
        return Value(
            value=self.value + other.value,
            children={self, other},
            operation=Op.ADD,
        )

    def __mul__(self, other):
        return Value(
            value=self.value * other.value,
            children={self, other},
            operation=Op.MUL,
        )

    def __str__(self):
        s = json.dumps({
            "value": self.value,
            "children": [json.loads(str(v)) for v in self.children],
            "operation": str(self.operation),
        }, indent=2)
        return s

    def __repr__(self):
        return str(self)

a = Value(2.0)
b = Value(-3.0)
c = Value(10.0)
print(a*b+c)

{
  "value": 4.0,
  "children": [
    {
      "value": 10.0,
      "children": [],
      "operation": "none"
    },
    {
      "value": -6.0,
      "children": [
        {
          "value": -3.0,
          "children": [],
          "operation": "none"
        },
        {
          "value": 2.0,
          "children": [],
          "operation": "none"
        }
      ],
      "operation": "multiplication"
    }
  ],
  "operation": "addition"
}

We can see a tree-like structure that represents the nodes we use for the final calculation a*b+c.

Graph Visualization#

As these Value objects become more and more nested, it might be easier to visualize them as a graph. Here we’re going to use the Graphviz package to implement a method for displaying our mathematical expression as a graph:

    def render_graph(self):
        digraph = Digraph(format="svg", graph_attr={"rankdir": "LR"})
        queue = deque([self])
        while queue:
            current = queue.popleft()
            current_id = str(id(current))
            label = "{ %s | value: %.4f }" % (current.label, current.value)
            digraph.node(name=current_id, label=label, shape="record")
            if current.operation != Op.NONE:
                op_id = current_id + str(current.operation)
                digraph.node(
                    name=op_id,
                    label=current.operation.opstr(),
                )
                digraph.edge(op_id, current_id)
                for child in current.children:
                    digraph.edge(str(id(child)), op_id)
                    queue.append(child)
        return digraph

 class Value:
    def __init__(self, value, children=set(), operation=Op.NONE, label=""):
        self.value = value
        self.children = children
        self.operation = operation
        # Adding a label field to more easily identify Value objects.
        self.label = label

    def __add__(self, other):
        return Value(
            value=self.value + other.value,
            children={self, other},
            operation=Op.ADD,
        )

    def __mul__(self, other):
        return Value(
            value=self.value * other.value,
            children={self, other},
            operation=Op.MUL,
        )

    def __str__(self):
        s = json.dumps({
            "value": self.value,
            "children": [json.loads(str(v)) for v in self.children],
            "operation": str(self.operation),
        }, indent=2)
        return s

    def __repr__(self):
        return str(self)

    def render_graph(self):
        digraph = Digraph(format="svg", graph_attr={"rankdir": "LR"})
        queue = deque([self])
        while queue:
            current = queue.popleft()
            current_id = str(id(current))
            label = "{ %s | value: %.4f }" % (current.label, current.value)
            digraph.node(name=current_id, label=label, shape="record")
            if current.operation != Op.NONE:
                op_id = current_id + str(current.operation)
                digraph.node(
                    name=op_id,
                    label=current.operation.opstr(),
                )
                digraph.edge(op_id, current_id)
                for child in current.children:
                    digraph.edge(str(id(child)), op_id)
                    queue.append(child)
        return digraph

Let’s test out the render_graph method.

a = Value(2.0, label="a")
b = Value(-3.0, label="b")
c = Value(10.0, label="c")
(a*b+c).render_graph()

Backpropagation#

Now that we have our Value class in a more complete state and a nice way to display it, we can start talking about backpropagation.

Consider the following function:

\[ L = a(b+cd) \]

The goal of backpropagation is to figure out how the inputs to a mathematical function affect the output. More concretely, in this example, backpropagation is asking “if I slightly change the value of \(a\), how does that affect the output of \(L\). Likewise, what happens to \(L\) if I change the value of \(b\), and so on…”.

Because this is a simple enough equation, we can quickly eyeball it and find the partial derivatives in our head:

\[ L = a(b + cd) = ab + acd \]\[\begin{aligned} \frac{\partial L}{\partial a} &= b + cd \hspace{1.5cm} &\frac{\partial L}{\partial b} = a \\[1em] \frac{\partial L}{\partial c} &= ad \hspace{1.5cm} &\frac{\partial L}{\partial d} = ac \end{aligned}\]

However, you can imagine this quickly because untenable as we introduce more and more variables. We need to come up with a way to programmatically calculate these partial derivatives.

Let’s first try to visualize our our function \(L\) as a graph. For this, we are going to set \(a\), \(b\), \(c\), and \(d\) to arbitrary values:

\[ a = -2.0, \hspace{1.0cm} b = 10.0, \hspace{1.0cm} c = 2.0, \hspace{1.0cm} d = -3.0 \]

Now let’s build out this expression using our Value class and render it.

a = Value(-2.0, label="a")
b = Value(10.0, label="b")
c = Value(2.0, label="c")
d = Value(-3.0, label="d")
e = c*d; e.label = "cd"
f = b+e; f.label = "b+cd"
L = a*f; L.label = "a(b+cd)"
L.render_graph()

For backpropagation, we want to know how tweaking any of these leaf nodes affects the output at the end of the graph. And the way we are going to “propagate” information to and from the leaf nodes is by maintaining a “local gradient” for each node.

class Value:
    def __init__(self, value, children=set(), operation=Op.NONE, label="", gradient=0.0):
        self.value = value
        self.children = children
        self.operation = operation
        self.label = label
        self.gradient = gradient

class Value:
    def __init__(self, value, children=set(), operation=Op.NONE, label="", gradient=0.0):
        self.value = value
        self.children = children
        self.operation = operation
        self.label = label
        self.gradient = gradient

    def __add__(self, other):
        return Value(
            value=self.value + other.value,
            children={self, other},
            operation=Op.ADD,
        )

    def __mul__(self, other):
        return Value(
            value=self.value * other.value,
            children={self, other},
            operation=Op.MUL,
        )

    def __str__(self):
        s = json.dumps({
            "value": self.value,
            "children": [json.loads(str(v)) for v in self.children],
            "operation": str(self.operation),
        }, indent=2)
        return s

    def __repr__(self):
        return str(self)

    def render_graph(self):
        digraph = Digraph(format="svg", graph_attr={"rankdir": "LR"})
        queue = deque([self])
        while queue:
            current = queue.popleft()
            current_id = str(id(current))
            label = "%s | value: %.4f | gradient: %.4f" % (current.label, current.value, current.gradient)
            digraph.node(name=current_id, label=label, shape="record")
            if current.operation != Op.NONE:
                op_id = current_id + str(current.operation)
                digraph.node(
                    name=op_id,
                    label=current.operation.opstr(),
                )
                digraph.edge(op_id, current_id)
                for child in current.children:
                    digraph.edge(str(id(child)), op_id)
                    queue.append(child)
        return digraph

Now if we render our graph again, we should see our gradient values.

a = Value(-2.0, label="a")
b = Value(10.0, label="b")
c = Value(2.0, label="c")
d = Value(-3.0, label="d")
e = c*d; e.label = "cd"
f = b+e; f.label = "b+cd"
L = a*f; L.label = "a(b+cd)"
L.render_graph()

Calculating gradients by manually#

As you can see, our gradients are initialize to 0.0000 and we want to be able fill them out somehow. We’ll eventually automate the process, but before we do that let’s get a better intuitive understand of how that works by calculating the gradient of a few Value objects by hand. When performing backpropagation, we start at the end of our graph and, well — work backwards.

The first one is always the easiest.

\[ \frac{\partial(a(b+cd))}{\partial(a(b+cd))} = 1 \]

This is basically saying “if we make a change to the output by \(x\), we’re making a change to the output by \(x\)”. Not much to overthink here.

Now let’s look at how \(a(b+cd)\) changes with respect to \(b+cd\). The answer might be obvious using a simple calculus rule, but you can always prove this to yourself using the formula for the derivative of a function.

\[\begin{aligned} \frac{\partial (a(b+cd))}{\partial (b+cd)} &= \lim_{h \to 0} \frac{(a((b+cd)+h)) - (a(b+cd))}{h} \\ &= \lim_{h \to 0} \frac{\bcancel{ab} + \bcancel{acd} + ah - \bcancel{ab} + \bcancel{acd}}{h} \\ &= \lim_{h \to 0} \frac{a\bcancel{h}}{h} \\ &= a \end{aligned}\]

You can do the same proof for how \(a(b+cd)\) changes with respect to \(a\) and find that \(\frac{\partial a(b+cd)}{\partial a} = b+cd\). At this point, you may notice that the derivative of the product of two values with respect to one of the values is just the other value. You can think of changes to one of the values is being multiplied by the other value, if that helps.

So, if we fill in the gradients we currently have, we have something like the following.

Solving for \(\frac{\partial (a(b+cd))}{\partial b}\), we get the following.

\[\begin{aligned} \frac{\partial (a(b+cd))}{\partial b} &= \lim_{h \to 0} \frac{a((b+h)+cd) - a(b+cd)}{h} \\ &= \lim_{h \to 0} \frac{\bcancel{ab}+ah+\bcancel{acd}-\bcancel{ab}+\bcancel{acd}}{h} \\ &= \frac{ah}{h} = a \end{aligned}\]

If we solve for \(\frac{\partial (a(b+cd))}{\partial cd}\), we find that \((a(b+cd))\) with respect to \(cd\) changes by a factor of \(a\) as well. When performing backpropagation, we can think of the gradient dispersing to all of the children nodes when traversing through an addition operation.

Lastly, we need to solve for the gradients \(c\) and \(d\).

Let’s first solve for \(c\).

\[\begin{aligned} \frac{\partial (a(b+cd))}{\partial c} &= \lim_{h \to 0} \frac{a(b+(c+h)d)-a(b+cd)}{h} \\ &= \lim_{h \to 0} \frac{a(b+cd+dh)-ab-acd}{h} \\ &= \lim_{h \to 0} \frac{\bcancel{ab}+\bcancel{acd}+adh-\bcancel{ab}-\bcancel{acd}}{h} \\ &= ad \end{aligned}\]

If we solved for the gradient of \(d\), we would unsurprisingly get \(\frac{\partial (a(b+cd))}{\partial d} = ac\). So I initially mentioned that in multiplication, the gradient for one value is just the other value. But this is not completely true. Here, we can see that the “other value” is being multiplied by \(a\). So multiplication involves not only just the other value but multiplying that value by the parent node’s gradient.

So we have finally filled out the gradients for our expression. Obviously to programmatically find the gradients this way is intractable, so we need to come up with another solution to automate this process.

Calculating gradients automatically#

When we were trying to calculate gradients by hand, we ended up using the derivative formula. But it’s also important to note we could have just easily used the chain rule.

Chain rule: addition example#

In the case for calculating the gradient of expression with respect to \(b\) (where \(b\) is involved in an addition operation), we can see that:

\[ \frac{\partial (a(b+cd))}{\partial b} = \frac{\partial (a(b+cd))}{\partial (b+cd)} \cdot \frac{\partial (b+cd)}{\partial b} \]

From our hand calculations, we know that \(\frac{\partial (a(b+cd))}{\partial (b+cd)} = -2.0\) and using simple calculus rules, \(\frac{\partial (b+cd)}{\partial b} = 1\), so \(\frac{\partial (a(b+cd))}{\partial b} = -2.0\). Like I mentioned before, when performing back propagation on the addition operator, we can think of the gradient from the resulting node dispersing back to its children nodes. In other words, all children nodes will receive the same gradient as its parent through the addition operator.

Chain rule: multiplication example#

Similarly, calculating the gradient for the expression with respect to \(c\) (where \(c\) is involved in a multiplication operation) looks like the following:

\[ \frac{\partial (a(b+cd))}{\partial c} = \frac{\partial (a(b+cd))}{\partial (b+cd)} \cdot \frac{\partial (b+cd)}{\partial cd} \cdot \frac{\partial cd}{\partial c} \]

From our hand calculations, we know that \(\frac{\partial (a(b+cd))}{\partial (b+cd)} = -2.0\). Using simple calculus rules, we see that \(\frac{\partial (b+cd)}{\partial cd} = 1\) and \(\frac{\partial cd}{\partial c} = -3\), so \(\frac{\partial (a(b+cd))}{\partial c} = -2 \cdot \ 1 \cdot -3 = 6\). The insight to realize here is that the gradient of a node involved in multiplication is the product of the resulting node’s gradient and the sibling node’s value.

Creating backward functions for Value operations#

So now that we have come up with some general steps to calculate the gradients for nodes involved in addition and multiplication, we can implement this is in code. The idea here is to have each node have a callback called backward which will be used to update the gradients of its children. In the case of leaf nodes, this function will do nothing.

For addition, we modifying the existing magic function to look like the following:

    def __add__(self, other):
        result = Value(
            value=self.value + other.value,
            children={self, other},
            operation=Op.ADD,
        )
        def backward():
            self.gradient += result.gradient
            other.gradient += result.gradient
        result.backward = backward
        return result

Notice in the backward closure, the gradients of both children nodes (self and other) are being assigned to the parent’s gradient (result).

We also need to modify the multiplication operation as well:

    def __mul__(self, other):
        result = Value(
            value=self.value * other.value,
            children={self, other},
            operation=Op.MUL,
        )
        def backward():
            self.gradient += other.value * result.gradient
            other.gradient += self.value * result.gradient
        result.backward = backward
        return result

Here the backward closure just assigns the gradients of the children nodes to the sibling node’s value multiplied by the parent’s gradient.

Notice how we are accumulating the gradients here by using the += operator. If we just did self.gradient = ... and other.gradient = ..., this would end up causing a bug in the case where a node is used multiple times because each backward call would cause the node’s gradient to be overwritten.

Implementing a backpropagation method#

The last thing we need to do is to implement a method to kick off the whole backpropagation process.

    def backpropagation(self):
        self.gradient = 1.0
        queue = [self]
        while len(queue) > 0:
            current = queue[0]
            queue = queue[1:]
            current.backward()
            queue.extend([child for child in current.children])

Each node will be able to call a backpropagation method which will calculate the gradients for all of its descendents. The calling node will immediately have its gradient assigned to a value of 1. Then we use a queue data structure to perform a breath-first traversal of the graph and call the backward closure on each child node. This process repeats until we have traversed the whole graph and have our gradients calculated.

Here is the full code:

class Value:
    def __init__(self, value, children=set(), operation=Op.NONE, label="", gradient=0.0):
        self.value = value
        self.children = children
        self.operation = operation
        self.label = label
        self.gradient = gradient
        self.backward = lambda: None

    def backpropagation(self):
        self.gradient = 1.0
        queue = [self]
        while len(queue) > 0:
            current = queue[0]
            queue = queue[1:]
            current.backward()
            queue.extend([child for child in current.children])

    def __add__(self, other):
        result = Value(
            value=self.value + other.value,
            children={self, other},
            operation=Op.ADD,
        )
        def backward():
            self.gradient += result.gradient
            other.gradient += result.gradient
        result.backward = backward
        return result


    def __mul__(self, other):
        result = Value(
            value=self.value * other.value,
            children={self, other},
            operation=Op.MUL,
        )
        def backward():
            self.gradient += other.value * result.gradient
            other.gradient += self.value * result.gradient
        result.backward = backward
        return result

    def __str__(self):
        s = json.dumps({
            "value": self.value,
            "children": [json.loads(str(v)) for v in self.children],
            "operation": str(self.operation),
        }, indent=2)
        return s

    def __repr__(self):
        return str(self)

    def render_graph(self):
        digraph = Digraph(format="svg", graph_attr={"rankdir": "LR"})
        queue = deque([self])
        while queue:
            current = queue.popleft()
            current_id = str(id(current))
            label = "%s | value: %.4f | gradient: %.4f" % (current.label, current.value, current.gradient)
            digraph.node(name=current_id, label=label, shape="record")
            if current.operation != Op.NONE:
                op_id = current_id + str(current.operation)
                digraph.node(
                    name=op_id,
                    label=current.operation.opstr(),
                )
                digraph.edge(op_id, current_id)
                for child in current.children:
                    digraph.edge(str(id(child)), op_id)
                    queue.append(child)
        return digraph

TODO: Continue
